Nellie
Neon 16

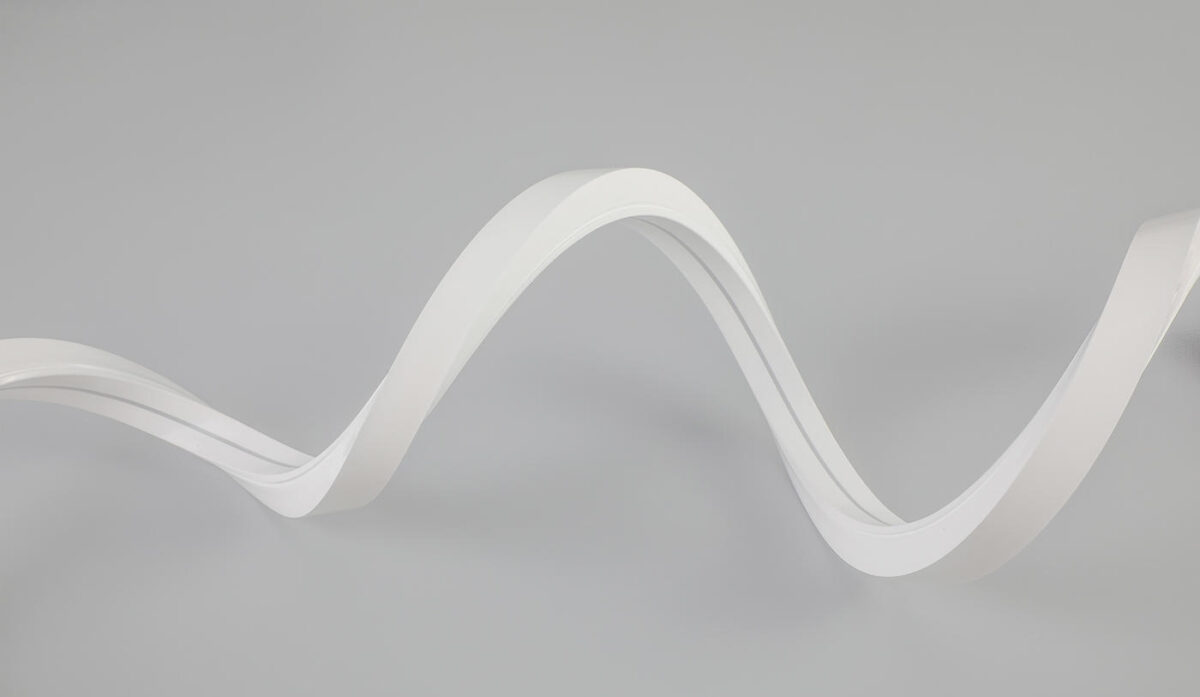

The Nellie Neon 16 is a “dual-bend” white-light neon that can be bent in two axes which allows for curves in two planes - great for complex applications such as curved joinery or walls. With cut increments at 50mm and various mounting accessories, Nellie Neon is incredibly versatile.

Features
  • 2700K, 3000K or 4000K colour temperatures.
  • Flexible in two axes.
  • Up to 10m per feed.
Additional Information
  • Customised lengths and configurations, made to measure.
  • Dimmable via 4CH PWM Casambi controller only (not compatible with DALI, Phase dim or other dimming protocols).
  • Installation: Interior and exterior.
  • Material: Silicon casing
  • Power supply: 24V DC - remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Ceiling mounted
  • Surface mounted
Diffuser Options
Profile Finish Options
  • Natural silver anodised
    Natural silver anodised
  • Textured white powder coat
    Textured white powder coat
  • Textured black powder coat
    Textured black powder coat
  • Custom powder coat colours
    Custom powder coat colours

LED Options

Other LED strip options including other optics may be available upon request. Please consult your local distributor for further information.

Nellie Neon 16
Code
Watts per metre
Colour temp.
Lumens per metre
Cutting increments
Beam
Max. length per feed
Protection
NN16-14-27
NN16-14-30
NN16-14-40
14W
2700K
3000K
4000K
640
675
710
50mm
120°
10M
IP65/IP67* & IK06
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
*IP65 rating is achieved with end cap and feed accessories below. IP67 rating is achieved with die-cast factory ends and feeds. Please allow a longer lead time for die-cast ends. Please consult your nearest distributor for lead times.

Joining and Mounting Accessories

Mounting clip

NN16-MC

Aluminium mounting profile

NN16-MP-2M

End cap

NN16-EC

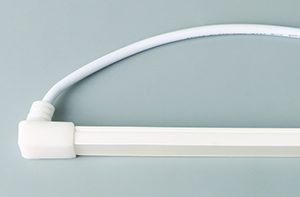

End cap with feed & connector, side feed or top feed

NN16-TF (top feed) / NN16-SF (side feed)

Flexible stainless steel mounting profile

NN16-FMP

Specification Sheet

Nellie Neon 16

Installation Instructions

NN16 installation instructions

Photometric File

Photometric tests are conducted with a 1000mm long piece of LED strip.

Please consult your local distributor if you require assistance with photometric files.

NN16
