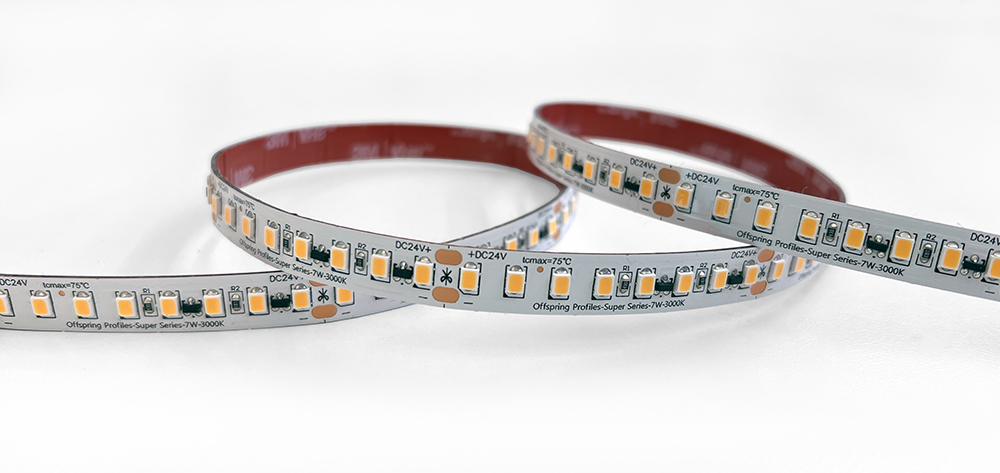

Super Series LED Strip

Super Series is a comprehensive range of professional-level LED strip with a large range of lumen package options and IP20, IP54 and IP67 protection levels. High CRI with high R9 values provide rich, accurate colours while achieving efficacy of up to 120 lumens per watt.

Features
  • High-quality design for maximum performance and reliability.
  • Wide range of output options.
  • High CRI and R9 values.
  • Up to 10m per feed.
Additional Information
  • 5-year warranty
  • CRI: 90+
  • R9: 60+
  • 3SDCM
  • PCB width: 10mm
  • Input voltage: 24V DC
  • Source life: L70 @ 50,000 hours
Super Series LED strip options
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SUPER-03-27
SUPER-03-30
SUPER-03-40
3W
2700K
3000K
4000K
310
330
345
144
10M
IP20, IP54, IP67
SUPER-07-27
SUPER-07-30
SUPER-07-40
7W
2700K
3000K
4000K
760
800
840
144
10M
IP20, IP54, IP67
SUPER-14-27
SUPER-14-30
SUPER-14-40
14W
2700K
3000K
4000K
1520
1600
1680
144
6M
IP20, IP54, IP67
SUPER-20-27
SUPER-20-30
SUPER-20-40
20W
2700K
3000K
4000K
1955
2060
2160
126
7M
IP20, IP54
SUPER-26-27
SUPER-26-30
SUPER-26-40
26W
2700K
3000K
4000K
2400
2530
2650
126
5M
IP20, IP54
For IP54 versions, add "-IP54" to end of codes above. Example code SUPER-07-40-IP54.
For IP67 versions, add "-IP67" to end of codes above.
IP54 and IP67 version reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.

Please take particular care when selecting LED strips as not all options are available for all profiles.

Other LED strip options may be available upon request. Please consult profile data sheets on our website to check LED stripe compatibity with each profile.

All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
