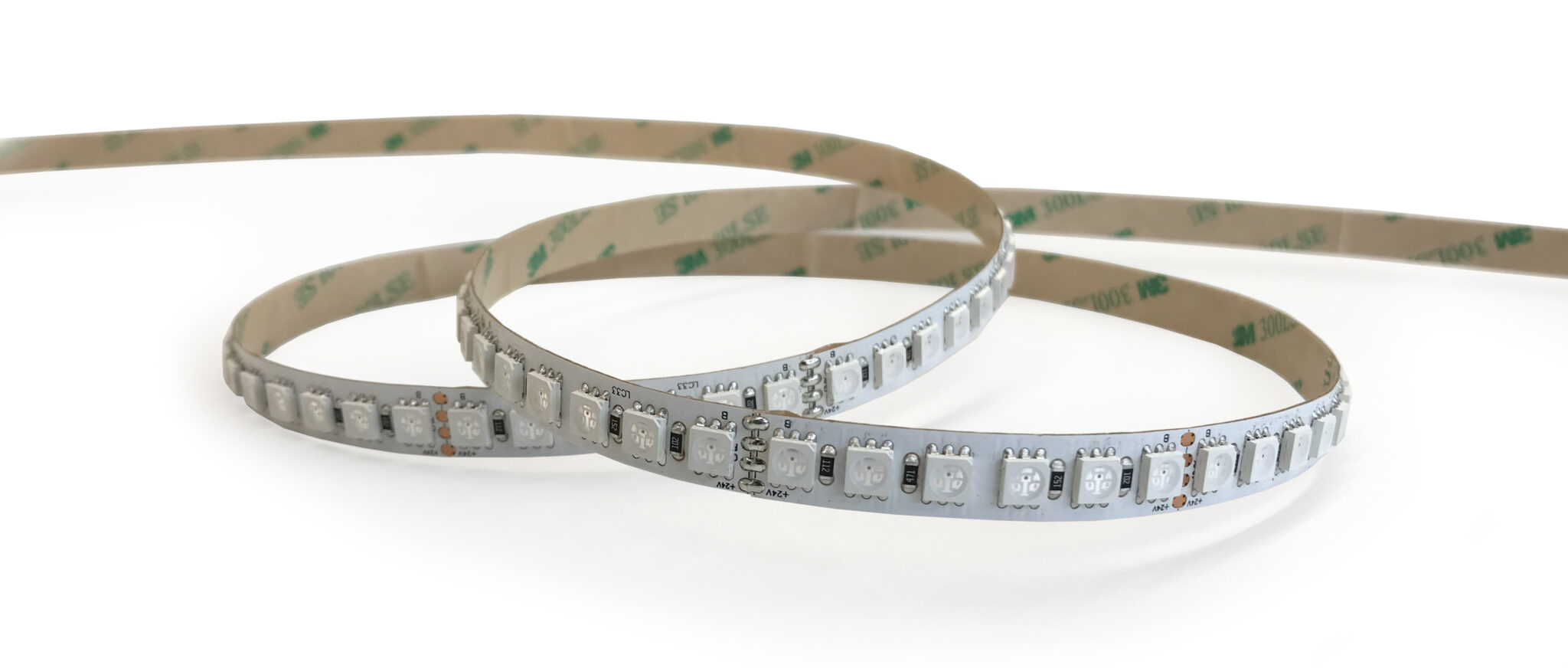

Spec Series
RGB LED Strip

Spec Series RGB LED Strip packs a huge punch of RGB colour with 1090 lumens per metre output and a unique close-pitch of only 8.3mm providing dot-free lighting in many of our profiles.

Features
  • Close-pitch LEDs for dot-free lighting.
  • Colour-changing RGB LEDs.
Additional Information
  • 5-year warranty
  • PCB width: 10mm
  • Input voltage: 24V DC
  • Source life: L70 @ 50,000 hours
Spec Series RGB LED strip options
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB
15W
Red/Blue/Green
1090
120
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-RGB-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.

Please take particular care when selecting LED strips as not all options are available for all profiles.

Other LED strip options may be available upon request. Please consult profile data sheets on our website to check LED stripe compatibity with each profile.

All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
