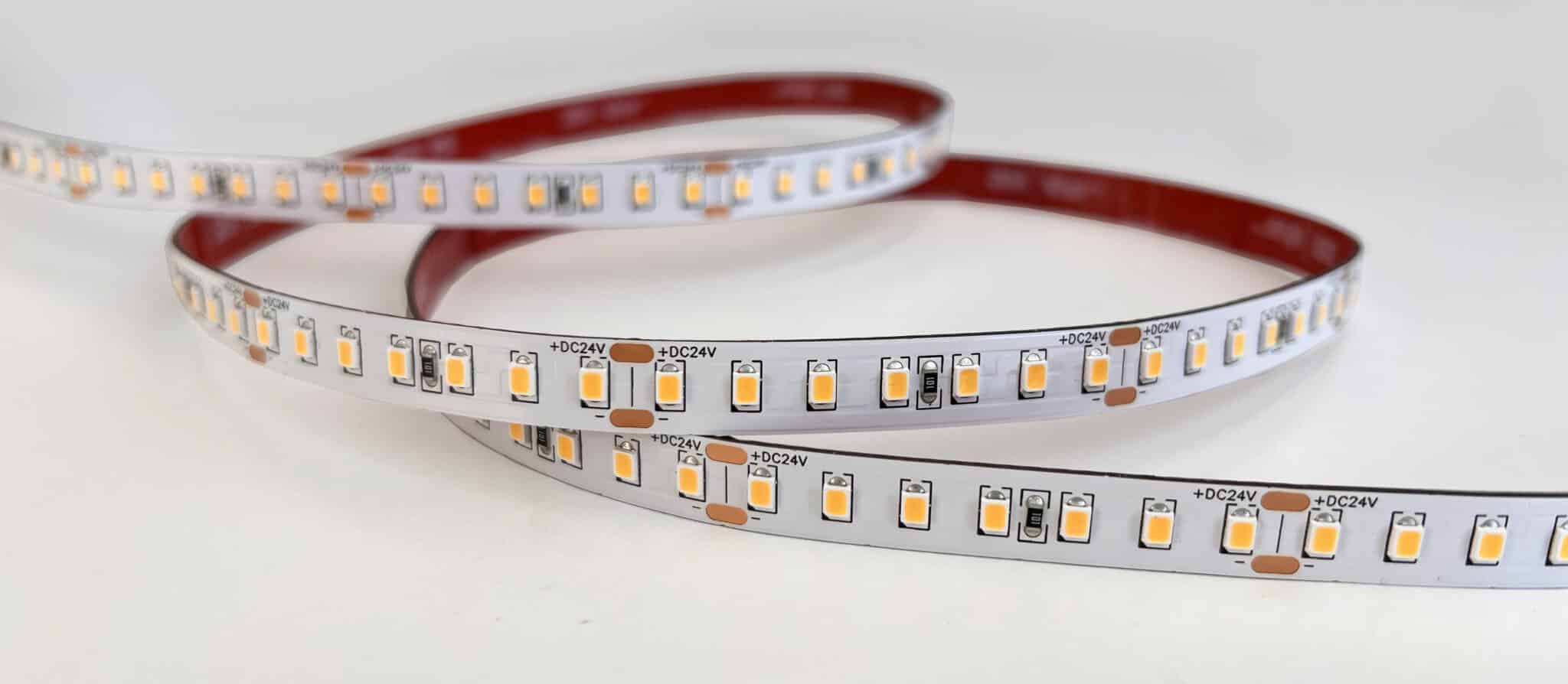

Spec Series
General LED Strip

Spec Series General LED Strip is a cost-effective range of specification-level LED strip. High CRI and high R9 values provide rich, accurate colours and IP67 versions allow it to be used in bathrooms or exterior applications.

Features
  • General purpose LED strip for residential and commercial use.
  • 3 outputs to suit different applications.
Additional Information
  • 5-year warranty
  • CRI: 90+
  • R9: 50+
  • 3SDCM
  • PCB width: 10mm
  • Input voltage: 24V DC
  • Source life: L70 @ 50,000 hours
Spec Series General LED strip options
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-07-30
SPEC-07-40
7W
3000K
4000K
760
800
128
5M
IP20, IP67
SPEC-14.4-30-140
SPEC-14.4-40-140
14.4W
3000K
4000K
1150
1180
140
5M
IP20, IP67
SPEC-15-30
SPEC-15-40
15W
3000K
4000K
1425
1500
126
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download Spec Series General LED Strip

Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.

Other LED strip options may be available upon request.

All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
