Richie
Rail 20

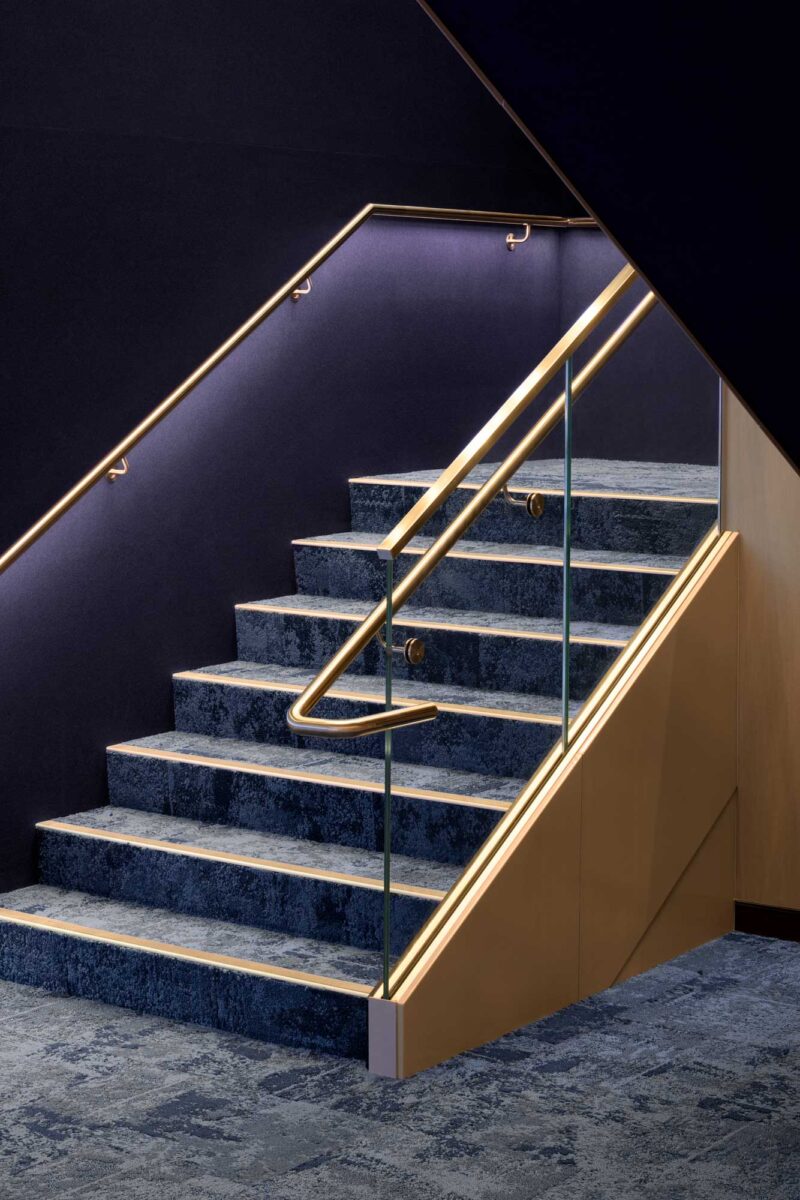

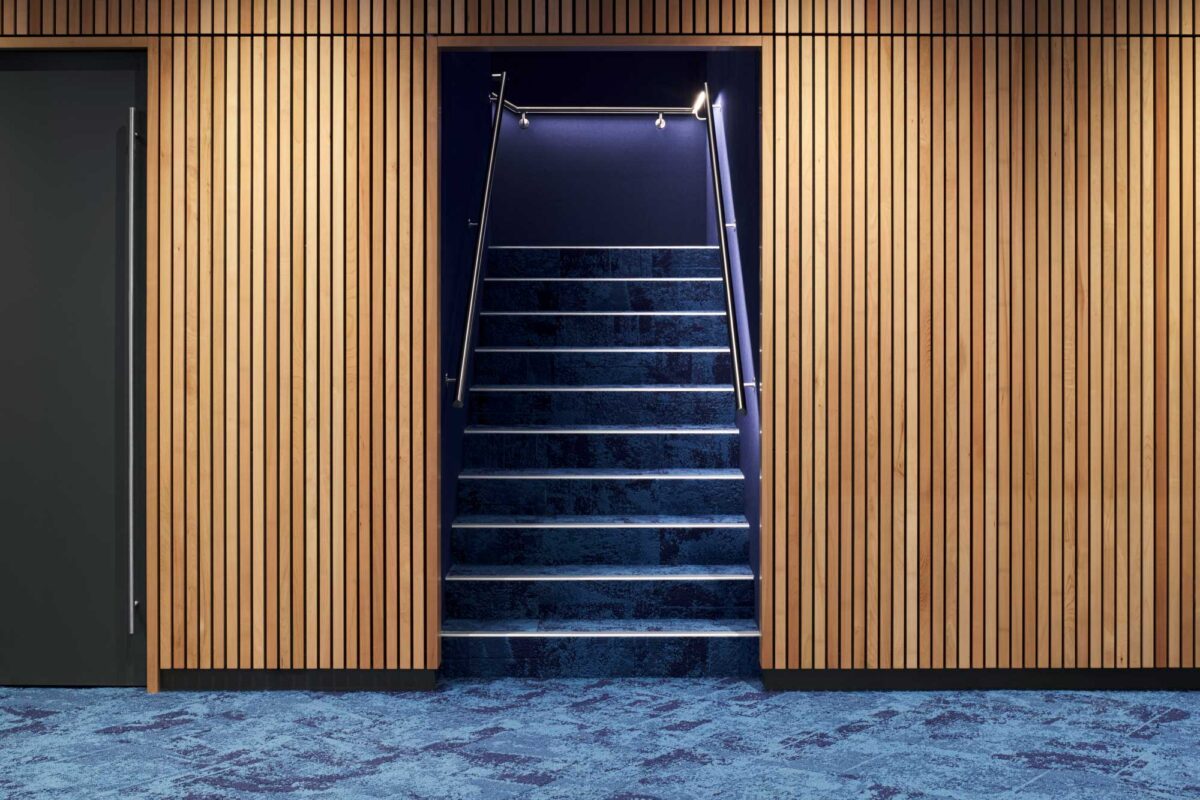

Richie Rail 20 is a unique illuminated handrail system with a diameter of 42.4mm. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 20 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 20 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

Features
  • Option for continuous emergency lighting, compliant to AS/NZS2293 with remote mounted emergency pack.
  • 42.4mm diameter 316 stainless steel system suitable for interior and exterior use.
  • D1/AS1 and AS/NZS 1170 compliant wall brackets.
  • Made for stairs and ramps for commercial, residential and public spaces, accessible routes.
Additional Information
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Various LED strip colour temperature and wattage options.
  • Installation: Interior or exterior (with IP65/IP67 rated LED strip).
  • Material: 316 stainless steel rail and components (including wall brackets, post tops etc), marine-grade extruded aluminium, polycarbonate diffuser.
  • Power Supply: 24V DC – remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Glass mounted
  • Post-top
  • Wall mounted
Diffuser Options
  • Opal polycarbonate
Profile Finish Options
  • Satin 316 stainless steel
  • Polished 316 stainless steel

LED Strip Options

Please take particular care when selecting LED strips as not all options are available for all profiles. Click on each LED strip series below to display the options suitable for the profile.

Other LED strip options may be available upon request. Please consult your local distributor for further information.

All LED strip lumen values mentioned in the tables below refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Super Series

Super Series
Our top-of-the-range and most versatile strip, suitable for almost any application.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SUPER-03-27
SUPER-03-30
SUPER-03-40
3W
2700K
3000K
4000K
310
330
345
144
10M
IP20, IP54, IP67
SUPER-07-27
SUPER-07-30
SUPER-07-40
7W
2700K
3000K
4000K
760
800
840
144
10M
IP20, IP54, IP67
SUPER-14-27
SUPER-14-30
SUPER-14-40
14W
2700K
3000K
4000K
1520
1600
1680
144
6M
IP20, IP54, IP67
For IP54 versions, add "-IP54" to end of codes above. Example code SUPER-07-40-IP54.
For IP67 versions, add "-IP67" to end of codes above.
IP54 and IP67 version reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
Download: Super Series LED Strip

Spec Series General

Spec Series General
Our general-purpose LED strip is a cost-effective solution for an array of interior and exterior uses including joinery.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-07-30
SPEC-07-40
7W
3000K
4000K
760
800
128
5M
IP20, IP67
SPEC-14.4-30-140
SPEC-14.4-40-140
14.4W
3000K
4000K
1150
1180
140
5M
IP20, IP67
SPEC-15-30
SPEC-15-40
15W
3000K
4000K
1425
1500
126
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series General LED Strip

Spec Series Long

Spec Series Long
Spec Series Long allows single lengths of strip of up to 20m long from a single feed.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-11-30-LONG
SPEC-11-40-LONG
11W
3000K
4000K
690
710
120
20M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-11-30-LONG-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Long LED Strip

Spec Series Colour

Spec Series Colour
Spec Series Colour LED strips offer fixed colour options of red, green and blue.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-R
SPEC-9.6-G
SPEC-9.6-B
9.6W
RED
GREEN
BLUE
240
720
180
120
5M
IP20, IP65
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-9.6-B-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Colour LED Strip

Spec Series TUNEABLE WHITE

Spec Series TUNEABLE WHITE
Spec Series colour tuneable white LED strip offers super-close pitch and high-out tuneable white options from 1800K to 5000K
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-19.2 -CTUNE
SPEC-20 -CTUNE
19.2W
20W
1800-5000K
1800-5000K
1200 - 1500
1500 - 1850
288
196
5M
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
LED pitch figures refer to LEDs of a single colour.
Lumen figures above apply at 3000K-4000K colour selections.
SPEC-19.2-CTUNE is 620lm at 1800K and 850lm at 5000K.
SPEC-20-CTUNE is 750lm at 1800K and 980lm at 5000K.
Download: Spec Series Tuneable White LED Strip

Spec Series RGB

Spec Series RGB
Spec Series RGB LED strip is a unique, close-pitch, powerful RGB strip.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB
15W
Red/Blue/Green
1090
120
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-RGB-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series RGB LED Strip

Spec Series RGBW

Spec Series RGBW
Spec Series RGBW is a high-density RGBW strip with a pitch of only 8.3mm.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-14.4-RGB- 9.6-30
14.4W RGB, 9.6W White
RGB +3000K
810 White
120
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance for white LEDs +/- 5%.
Download: Spec Series RGBW LED Strip

Spec Series Emergency

Spec Series Emergency
Spec Series Emergency LED Strip is designed for our Richie Rail 17, Richie Rail 20 and Richie Rail 26 illuminated handrail series, providing emergency lighting directly on to stairs, ramps and egress routes.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-30-2.5-40-EME
SPEC-15-40-2.5-40-EME
15W primary, 2.5W emergency
15W primary, 2.5W emergency
3000K primary, 4000K emergency
4000K primary, 4000K emergency
1025 primary, 180 emergency
1080 primary, 180 emergency
180
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-40-2.5-40-EME-IP67.
IP67 versions reduce above stated lumen figures by approximately 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Other colour temperatures available on special order.
Download: Spec Series Emergency LED Strip

Joining and Mounting Accessories

Extrusion

EX-RR20-MSA

Handrail, 316 stainless steel

HR-RR20-SS (Satin finish) / HR-RR20-SS-POL (Polished finish)

Wall bracket

WBRR-SS (Satin finish) / WBRR-SS-POL (Polished finish)

Post top bracket

PTBRR-SS (Satin finish) / PTBRR-SS-POL (Polished finish)

Glass mount bracket

GMBRR-SS (Satin finish)

Handrail end cap

EC-RR20-SS (Satin finish) / EC-RR20-SS-POL (Polished finish)

Straight joiner

JN-ST-RR20-SS (Satin finish) / JN-ST-RR20-SS-POL (Polished finish)

90 degree joiner

JN-90-RR20-SS (Satin finish) / JN-90-RR20-SS-POL (Polished finish)

Variable angle joiner, down

JN-VD-RR20-SS (Satin finish) / JN-VD-RR20-SS-POL (Polished finish)

Variable angle joiner, up

JN-VU-RR20-SS (Satin finish) / JN-VU-RR20-SS-POL (Polished finish)

Joiner tube, for welded systems only

JN-TUBE-RR20-SS (Satin finish) / JN-TUBE-RR20-SS-POL (Polished finish)

End cap for blank tube, for welded systems only

EC-TUBE-RR20-SS (Satin finish) / EC-TUBE-RR20-SS-POL (Polished finish)

90 degree bend, for welded systems only

JN-90-RR20-W-SS (Satin finish)

180 degree bend, for welded systems only

JN-180-RR20-W-SS (Satin finish)

Emergency pack (for use with Spec Series Emergency LED strip only)

YH24-1502CV

Surface mount flange for JN-TUBE-20-SS, post mount

FF-RR20-SS

Surface mount flange cover cap for FF-RR20-SS

FF-CC-20-SS (Satin finish) / FF-CC-20-SS-POL (Polished finish)

0.5W 3000K asymmetric LED spot, IP20 or IP66

SP-RR20-30-IP20 (IP20 version) / SP-RR20-30-IP66 (IP66 version)

Specification Sheet

Richie Rail 20
YH24-1502CV Emergency Pack
RR20-RR26 Emergency Mode Test Report
RR20-RR26 LM79 Test Report
Richie 20 & 26 LED spot

Installation Instructions

Modular installations (plug-and-play)
Welded systems
LED Spot

Photometric File

Photometric tests are conducted with a 500mm long LED strip, inside a silver anodised profile and diffuser as mentioned in the file.

Please note that black or dark powder coated extrusions will reduce delivered lumens by approximately 10%.

Please consult your local distributor if you require assistance with photometric files.

IES file and test report for RR20 & RR26 emergency mode
LM79 IES file and test report for RR20 & RR26 emergency system, normal operation mode

BIM Files

Revit
ArchiCAD
