Richie
Rail 17

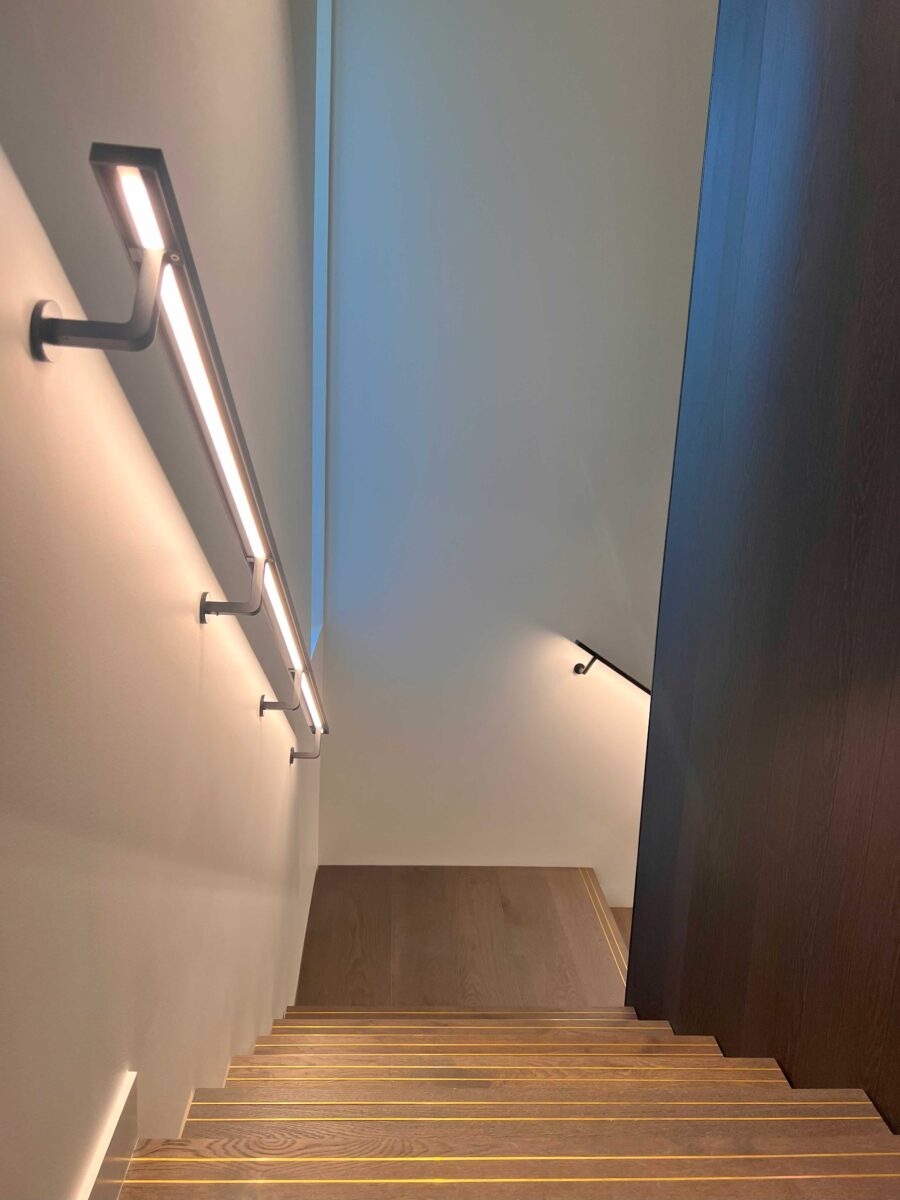

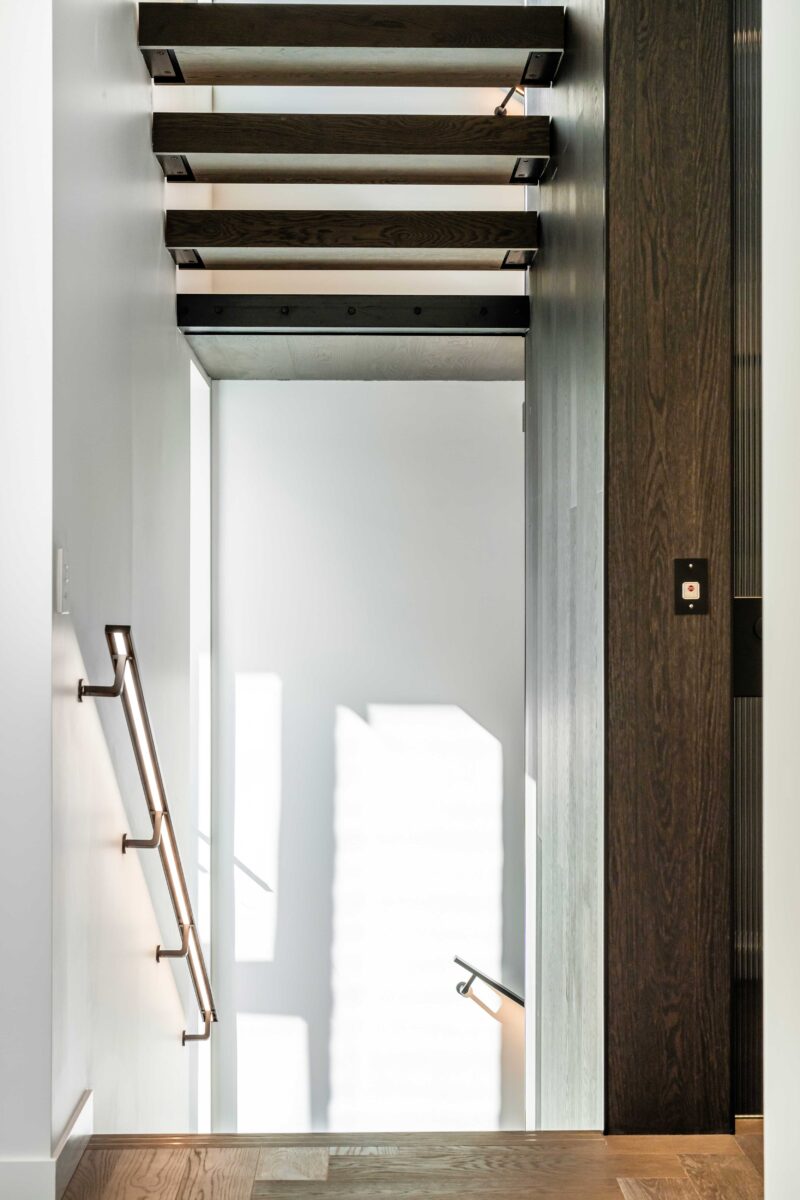

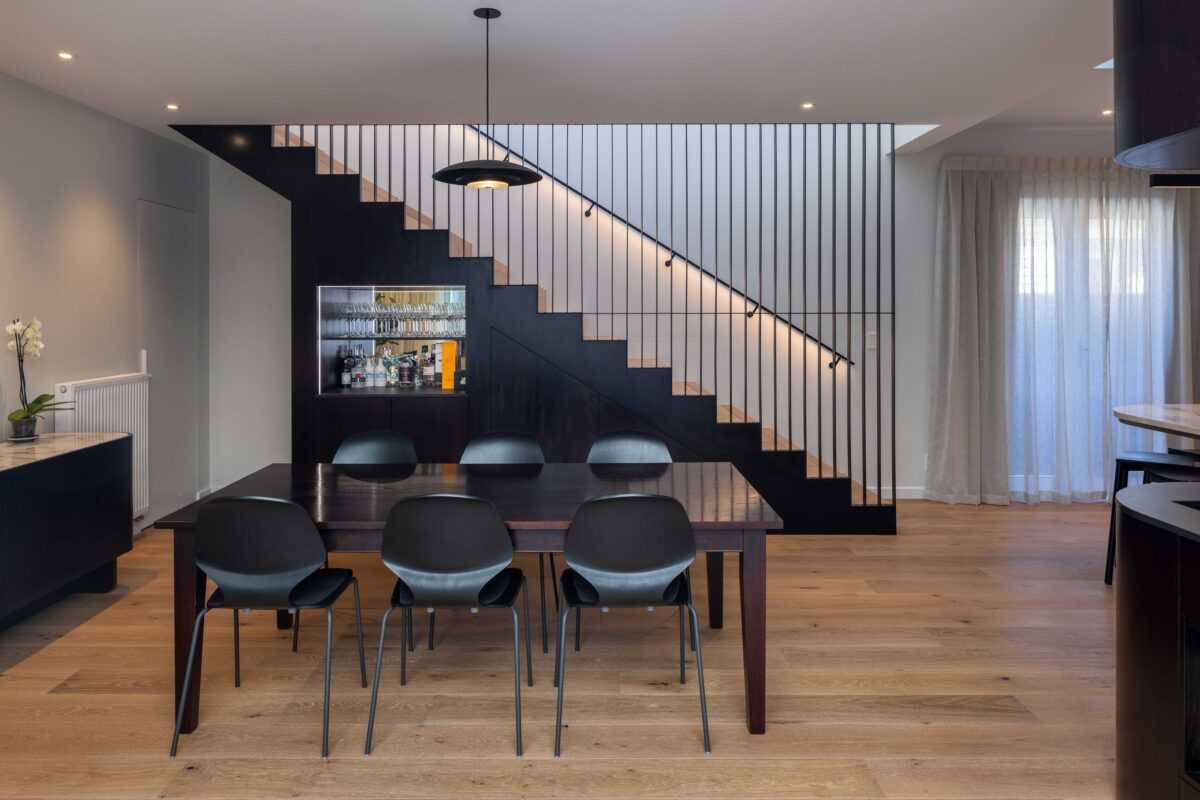

Richie Rail 17 is a unique illuminated handrail system. CNC machined wall brackets provide a beautiful finish and make for quick installation. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. Richie Rail 17 is suitable for use on residential and commercial stairs and thoroughfares.

Features
  • Sleek architectural aluminium handrail.
  • Option for continuous emergency lighting, compliant to AS/NZS2293 with remote mounted emergency pack.
  • D1/AS1 and AS/NZS 1170 compliant (with 750mm wall bracket spacings).
  • Made for residential or commercial stairs, lift cars, accessways.
Additional Information
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Various LED strip colour temperature and wattage options.
  • Installation: Interior and exterior (with IP65 or IP67 rated LED strip).
  • Material: Aluminium body & components, polycarbonate diffuser.
  • Power Supply: 24V DC – remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Glass mounted
  • Wall mounted
Diffuser Options
  • Opal polycarbonate
  • Clear polycarbonate
Profile Finish Options
  • Custom powder coat colours
    $item['profile_finish_option']

LED Strip Options

Please take particular care when selecting LED strips as not all options are available for all profiles. Click on each LED strip series below to display the options suitable for the profile.

Other LED strip options may be available upon request. Please consult your local distributor for further information.

All LED strip lumen values mentioned in the tables below refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.

Super Series

Super Series
Our top-of-the-range and most versatile strip, suitable for almost any application.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SUPER-03-27
SUPER-03-30
SUPER-03-40
3W
2700K
3000K
4000K
310
330
345
144
10M
IP20, IP54, IP67
SUPER-07-27
SUPER-07-30
SUPER-07-40
7W
2700K
3000K
4000K
760
800
840
144
10M
IP20, IP54, IP67
SUPER-14-27
SUPER-14-30
SUPER-14-40
14W
2700K
3000K
4000K
1520
1600
1680
144
6M
IP20, IP54, IP67
For IP54 versions, add "-IP54" to end of codes above. Example code SUPER-07-40-IP54.
For IP67 versions, add "-IP67" to end of codes above.
IP54 and IP67 version reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
Download: Super Series LED Strip

Spec Series General

Spec Series General
Our general-purpose LED strip is a cost-effective solution for an array of interior and exterior uses including joinery.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-07-30
SPEC-07-40
7W
3000K
4000K
760
800
128
5M
IP20, IP67
SPEC-14.4-30-140
SPEC-14.4-40-140
14.4W
3000K
4000K
1150
1180
140
5M
IP20, IP67
SPEC-15-30
SPEC-15-40
15W
3000K
4000K
1425
1500
126
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series General LED Strip

Spec Series Long

Spec Series Long
Spec Series Long allows single lengths of strip of up to 20m long from a single feed.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-11-30-LONG
SPEC-11-40-LONG
11W
3000K
4000K
690
710
120
20M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-11-30-LONG-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Long LED Strip

Spec Series Colour

Spec Series Colour
Spec Series Colour LED strips offer fixed colour options of red, green and blue.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-R
SPEC-9.6-G
SPEC-9.6-B
9.6W
RED
GREEN
BLUE
240
720
180
120
5M
IP20, IP65
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-9.6-B-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Colour LED Strip

Spec Series TUNEABLE WHITE

Spec Series TUNEABLE WHITE
Spec Series colour tuneable white LED strip offers super-close pitch and high-out tuneable white options from 1800K to 5000K
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-19.2 -CTUNE
SPEC-20 -CTUNE
19.2W
20W
1800-5000K
1800-5000K
1200 - 1500
1500 - 1850
288
196
5M
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
LED pitch figures refer to LEDs of a single colour.
Lumen figures above apply at 3000K-4000K colour selections.
SPEC-19.2-CTUNE is 620lm at 1800K and 850lm at 5000K.
SPEC-20-CTUNE is 750lm at 1800K and 980lm at 5000K.
Download: Spec Series Tuneable White LED Strip

Spec Series RGB

Spec Series RGB
Spec Series RGB LED strip is a unique, close-pitch, powerful RGB strip.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB
15W
Red/Blue/Green
1090
120
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-RGB-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series RGB LED Strip

Spec Series RGBW

Spec Series RGBW
Spec Series RGBW is a high-density RGBW strip with a pitch of only 8.3mm.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-14.4-RGB- 9.6-30
14.4W RGB, 9.6W White
RGB +3000K
810 White
120
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance for white LEDs +/- 5%.
Download: Spec Series RGBW LED Strip

Spec Series Emergency

Spec Series Emergency
Spec Series Emergency LED Strip is designed for our Richie Rail 17, Richie Rail 20 and Richie Rail 26 illuminated handrail series, providing emergency lighting directly on to stairs, ramps and egress routes.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-30-2.5-40-EME
SPEC-15-40-2.5-40-EME
15W primary, 2.5W emergency
15W primary, 2.5W emergency
3000K primary, 4000K emergency
4000K primary, 4000K emergency
1025 primary, 180 emergency
1080 primary, 180 emergency
180
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-40-2.5-40-EME-IP67.
IP67 versions reduce above stated lumen figures by approximately 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Other colour temperatures available on special order.
Download: Spec Series Emergency LED Strip

Joining and Mounting Accessories

Wall bracket with square cover

WBRR17-HS (Hollow, for power feed / WBRR17-SS (Solid)

Wall bracket with round cover

WBRR17-HR (Hollow, for power feed) / WBRR17-SR (Solid)

Glass mount bracket with square cover

GMBRR17-SS

Glass mount bracket with round cover

GMBRR17-SR

Wall bracket plasterboard spacer, 10mm

WBPBS-10

Wall bracket plasterboard spacer, 13mm

WBPBS-13

Straight joiner

JN-ST-RR17

90 degree bend

JN-90-RR17

Variable bend

JN-V-RR17

Emergency pack (for use with Spec Series Emergency LED strip only)

YH24-1502CV

Specification Sheet

Richie Rail 17
YH24-1502CV Emergency Pack
RR17 Emergency Mode Test Report
RR17 LM79 Test Report

Installation Instructions

Richie Rail 17 Simple Straight Lengths
Richie Rail 17 Complex Systems

Photometric File

Photometric tests are conducted with a 500mm long LED strip, inside a silver anodised profile and diffuser as mentioned in the file.

Please note that black or dark powder coated extrusions will reduce delivered lumens by approximately 10%.

Please consult your local distributor if you require assistance with photometric files.

FF14, RR17, TT15 with SUPER-14-40
IES file and test report for RR17 emergency mode
LM79 IES file and test report for RR17 emergency system, normal operation mode
