Nellie
Neon 10

The Nellie Neon 10 is a “dual-bend” white-light neon that can be bent in two axes which allows for curves in two planes - great for complex applications such as curved joinery or walls. With no minimum cut increments and various mounting accessories, Nellie Neon 10 is incredibly versatile.

Features
  • 2700K, 3000K or 4000K colour temperatures.
  • Flexible in two axes.
  • Free-cutting - no minimum cut length.
Additional Information
  • Customised lengths and configurations, made to measure.
  • Installation: Interior and exterior.
  • Material: Silicon casing
  • Power supply: 24V DC - remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Surface mounted
Diffuser Options
Profile Finish Options
  • Natural silver anodised
    Natural silver anodised
  • Textured white powder coat
    Textured white powder coat
  • Textured black powder coat
    Textured black powder coat
  • Custom powder coat colours
    Custom powder coat colours

LED Options

Other LED strip options including other optics may be available upon request. Please consult your local distributor for further information.

Nellie Neon 10
Code
Watts per metre
Colour temp.
Lumens per metre
Cutting increments
Beam
Max. length per feed
Protection
NN10-8-27
NN10-8-30
NN10-8-40
8W
2700K
3000K
4000K
430
455
480
Free-cut (no minium cut length)
120°
5M
IP65/IP67* & IK06
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
*IP65 rating is achieved with end cap and feed accessories below. IP67 rating is achieved with die-cast factory ends and feeds. Please allow a longer lead time for die-cast ends. Please consult your nearest distributor for lead times.

Joining and Mounting Accessories

Aluminium mounting profile

NN10-MP-2M

Flexible stainless steel mounting profile

NN10-FMP

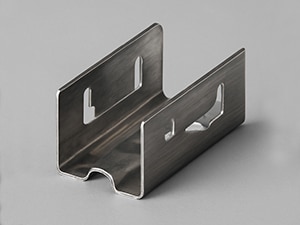

Mounting clip

NN10-MC

End cap

NN10-EC

End cap with feed & connector, side feed or top feed

NN10-TF (top feed) / NN10-SF (side feed)

Specification Sheet

Nellie Neon 10

Installation Instructions

NN10 installation instructions

Photometric File

Photometric tests are conducted with a 1000mm long piece of LED strip.

Please consult your local distributor if you require assistance with photometric files.
